Electric slip rings for Standard range
for Standard range
The electric slip rings of the standard range are designed to meet the majority of market needs.
These electrical applications are distinguished by their compact size, high protection rating, and the ability to configure various types of signals (including power signals and digital signals such as CAN Bus).
Our electric slip rings can be prepared to integrate a magnetic position sensor with CANopen protocol.
In addition to the standard range, the slip rings can be customized upon customer request. Thanks to their modular design, configurations can include up to 28 contacts with various signal types, current intensities, and rotary absolute encoder.

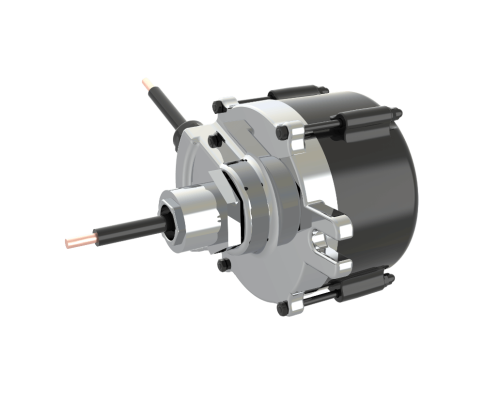

| ALA Code: | 3303053 |
| No. of passages: | Potenza: 7 CAN-bus: / |
| Intensity: | 12 Amp |
| Tension: | 48V DC 220V AC |
| IP Rating: | IP65 |
| ALA Code: | 3303052 |
| No. of passages: | Potenza: 12 CAN-bus: / |
| Intensity: | 12 Amp |
| Tension: | 48V DC 220V AC |
| IP Rating: | IP65 |
| ALA Code: | 3303018 |
| No. of passages: | Potenza: 18 CAN-bus: / |
| Intensity: | 12 Amp |
| Tension: | 48V DC 220V AC |
| IP Rating: | IP65 |

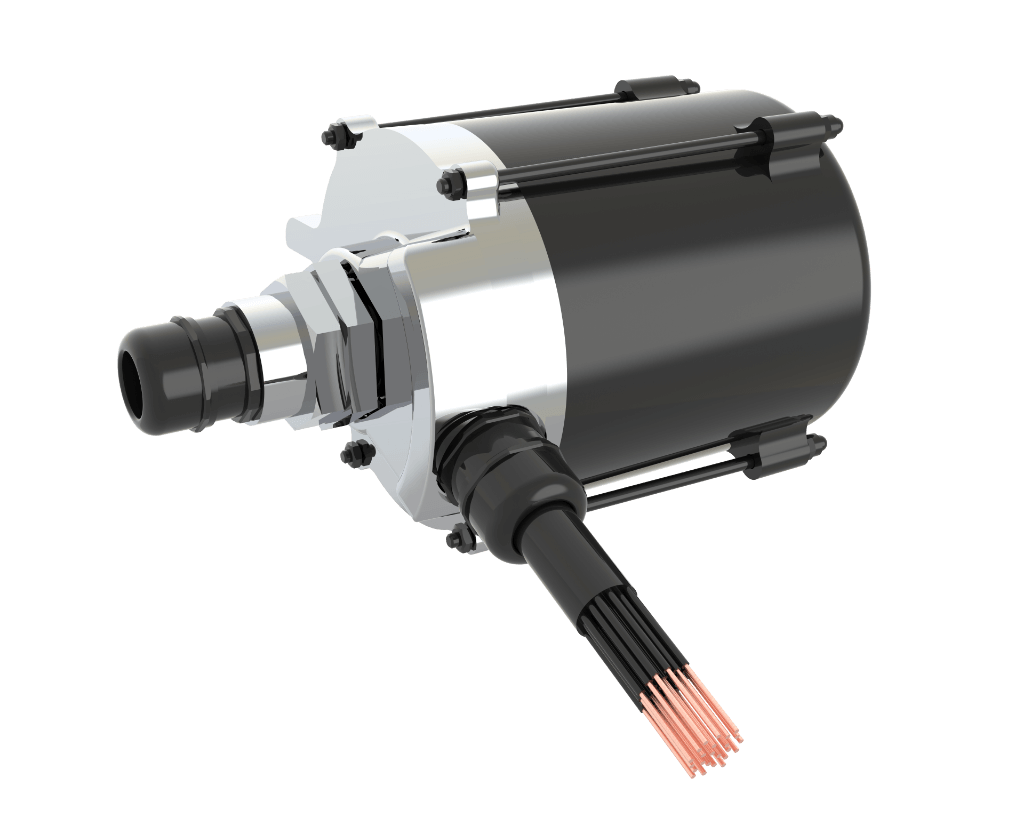

| ALA Code: | 3303059 |
| No. of passages: | Potenza: 7 CAN-bus: / |
| Intensity: | 24 Amp |
| Tension: | 48V DC 220V AC |
| IP Rating: | IP65 |

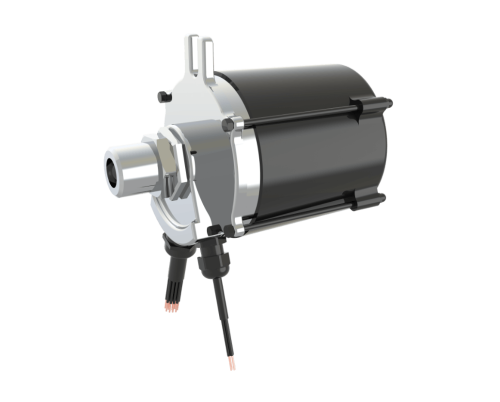

| ALA Code: | 3303068 |
| No. of passages: | Potenza: 8 CAN-bus: 4 |
| Intensity: | 12 Amp |
| Tension: | 48V DC 220V AC |
| IP Rating: | IP65 |

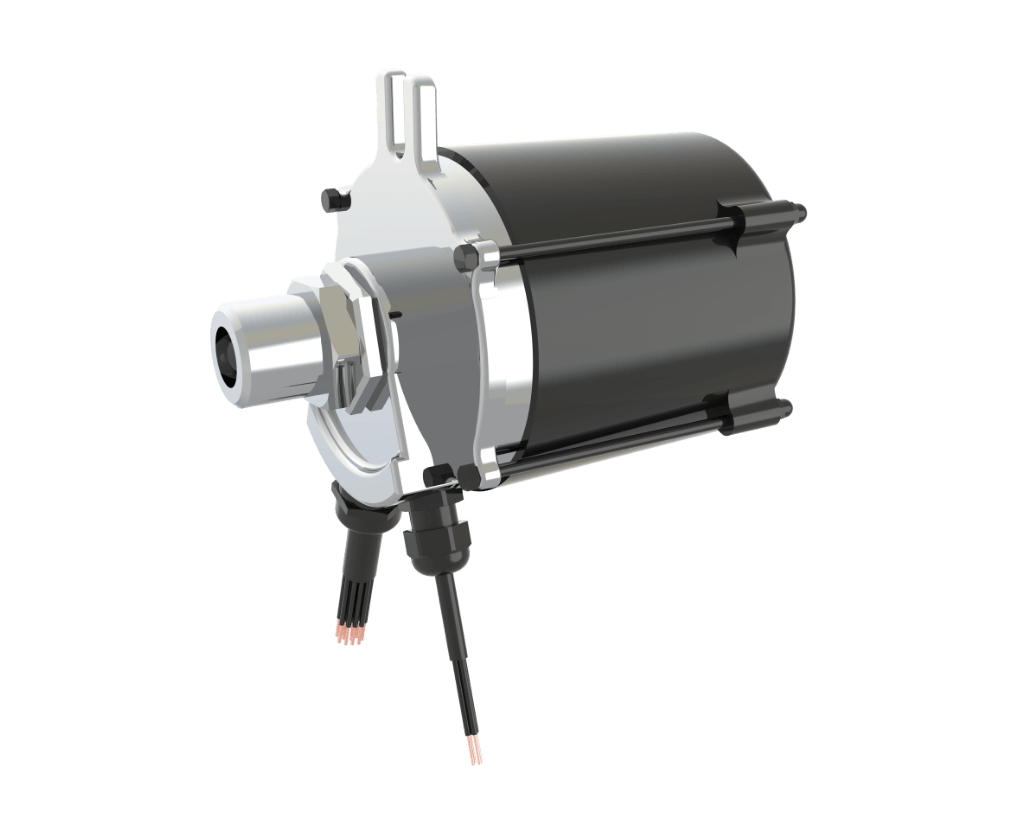

| ALA Code: | 3303083 |
| No. of passages: | Potenza: 16 CAN-bus: 4 |
| Intensity: | 12 Amp |
| Tension: | 48V DC 220V AC |
| IP Rating: | IP65 |
| ALA Code: | 3303060 |
| No. of passages: | Potenza: 20 CAN-bus: 4 |
| Intensity: | 12 Amp |
| Tension: | 48V DC 220V AC |
| IP Rating: | IP65 |

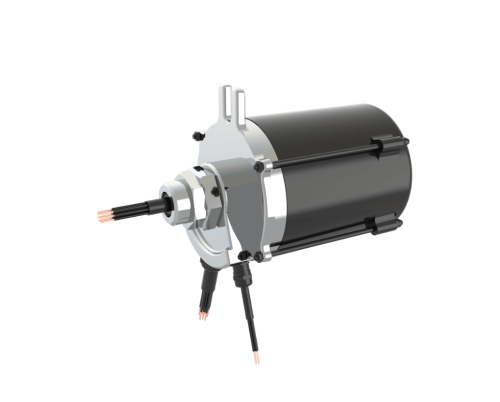

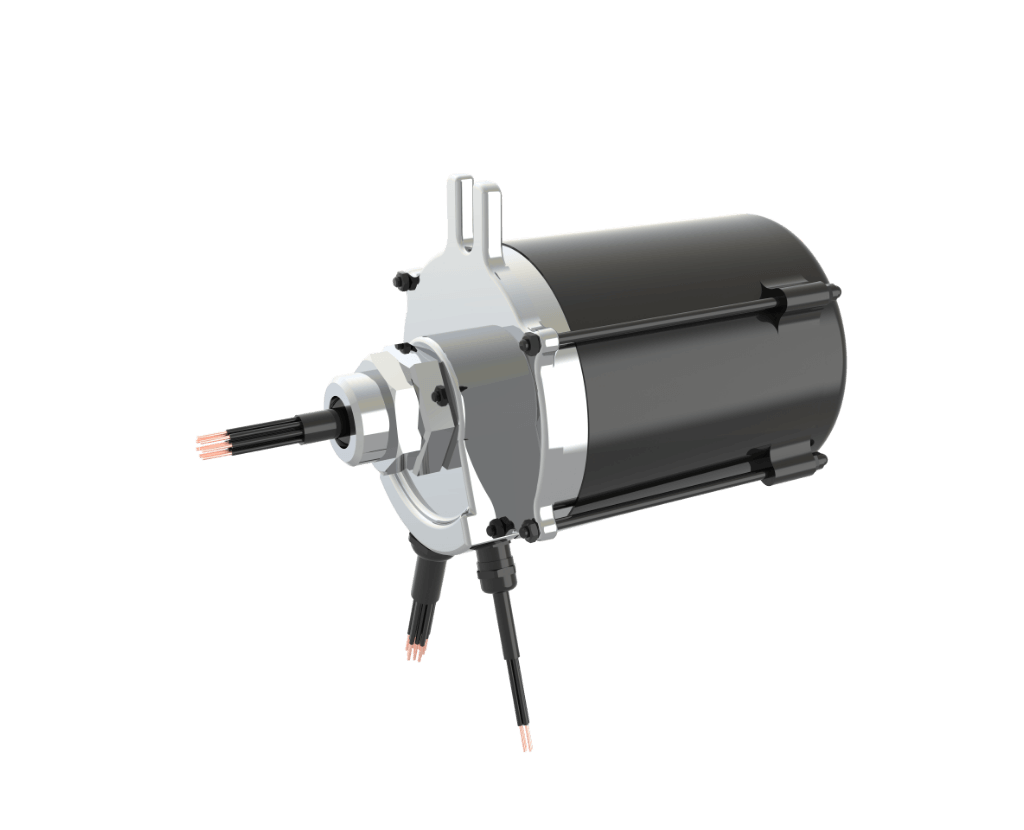

| ALA Code: | 3303232 |
| No. of passages: | Potenza: 23 CAN-bus: 4 |
| Intensity: | 12 Amp |
| Tension: | 48V DC 220V AC |
| IP Rating: | IP65 |

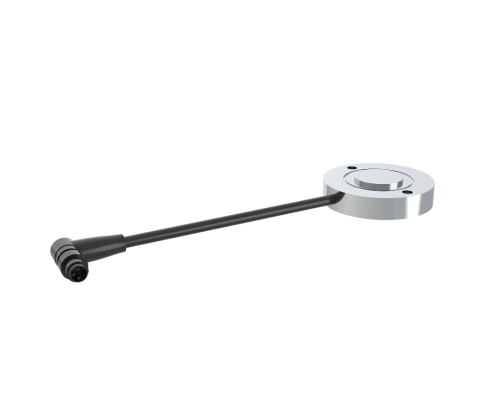

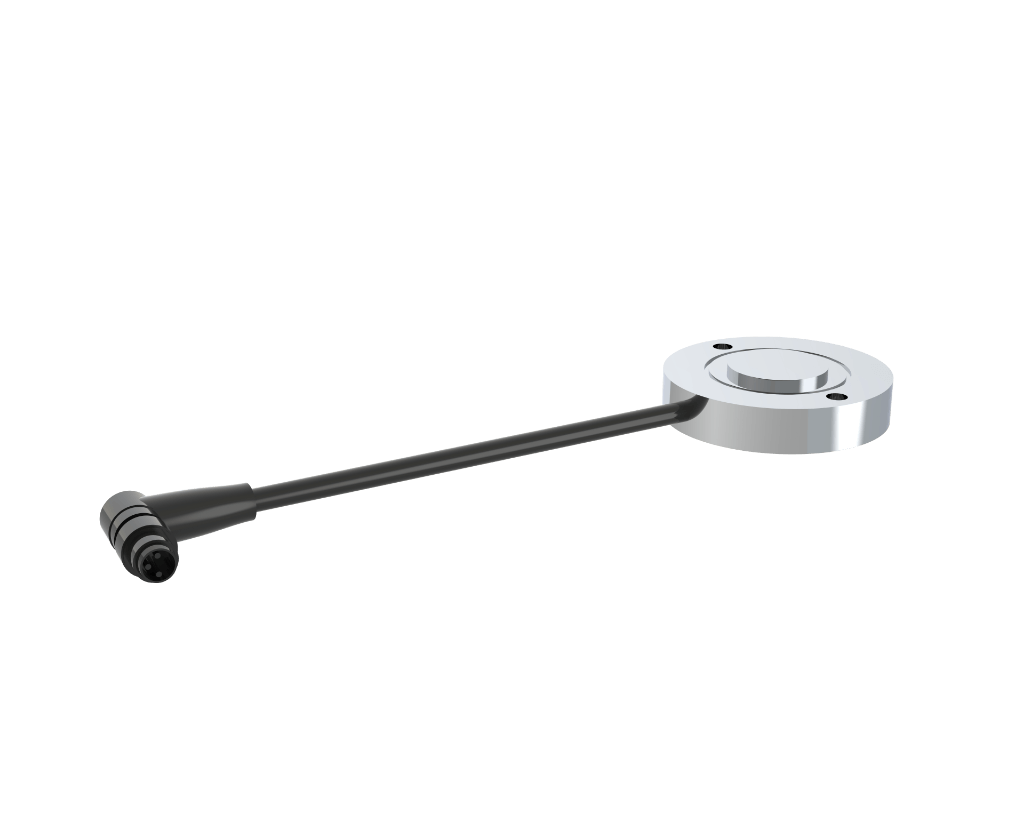

| Our rotary sensor is absolute, magnetic, single-turn rotary encoder. These transducers feature CANopen output and are certified with SIL 2 Performance Level D. Thanks to their contactless technology, they offer exceptional durability and precision. Their compact design is specifically engineered for integration within our electric slip rings. |
