HYDRAULIC SWIVEL JOINTS for Industrial Sector

Hydraulic Swivel Joints for Tool Machines

Industrial Sector

The hydraulic swivel joints for tool machines are compact and very small in size. The number of passages is low as well as the capacity. The main characteristics of these fluid swivel joints are the high rotation speed (around 50 - 80 rpm) and the operating position which is generally horizontal.

The fluids are generally hydraulic oil or water for cooling the tools. The following are a few examples:

Hydraulic Swivel Joint for Industrial Sector Code 10233800
ALA Code: 10233800
No. of passages: 14
Ø Shaft: 140 mm
Std pressure: 70 bar
Type of fluid: Hydraulic Oil/Water/Air

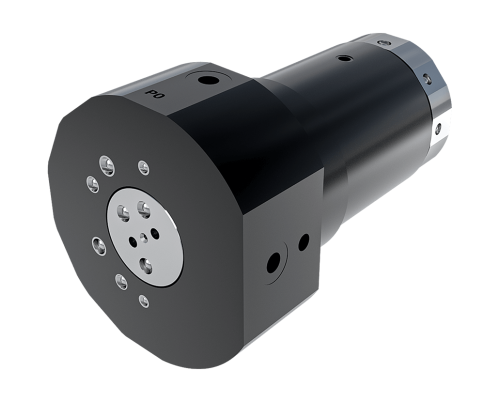

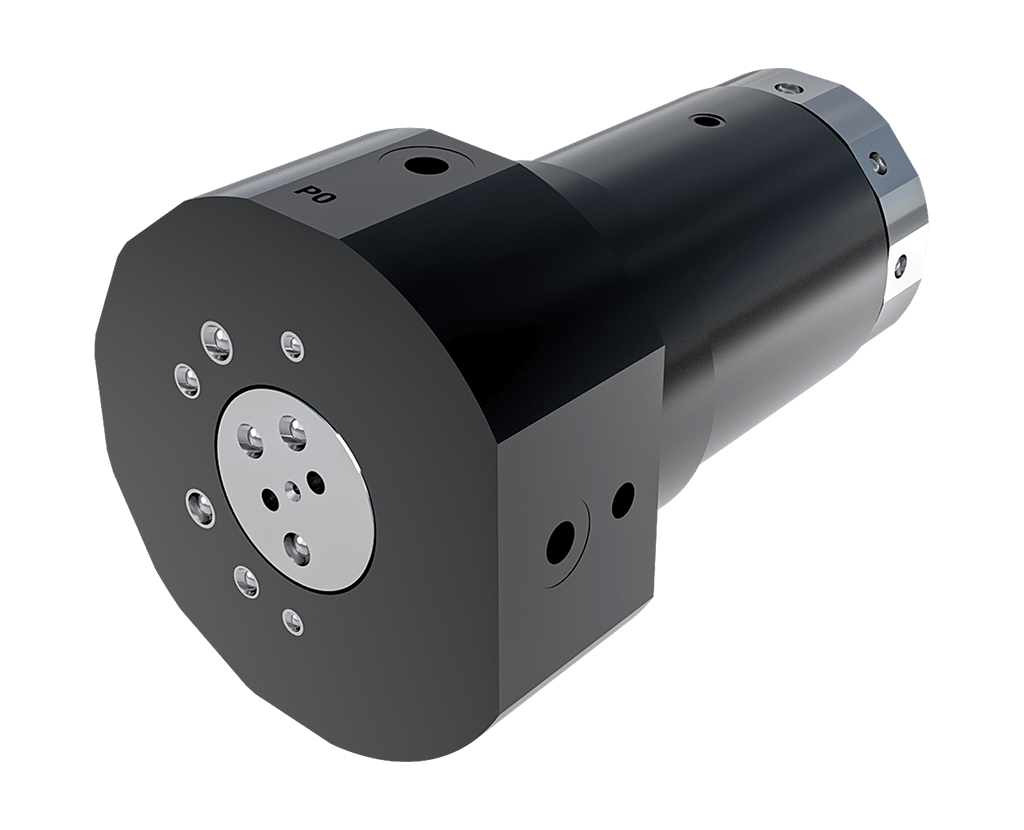

Hydraulic Swivel Joint for Industrial Sector Code 10215300
ALA Code: 10215300
No. of passages: 8
Ø Shaft: 60 mm
Std pressure: 70 bar
Type of fluid: Hydraulic Oil/Water/Air

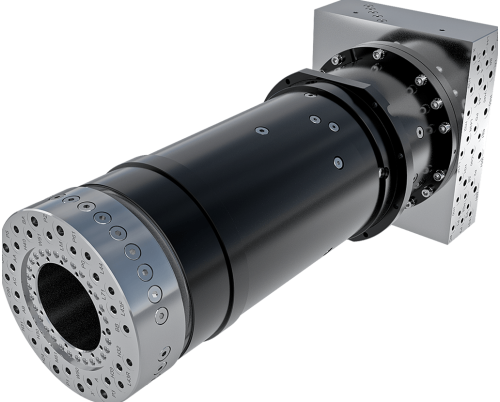

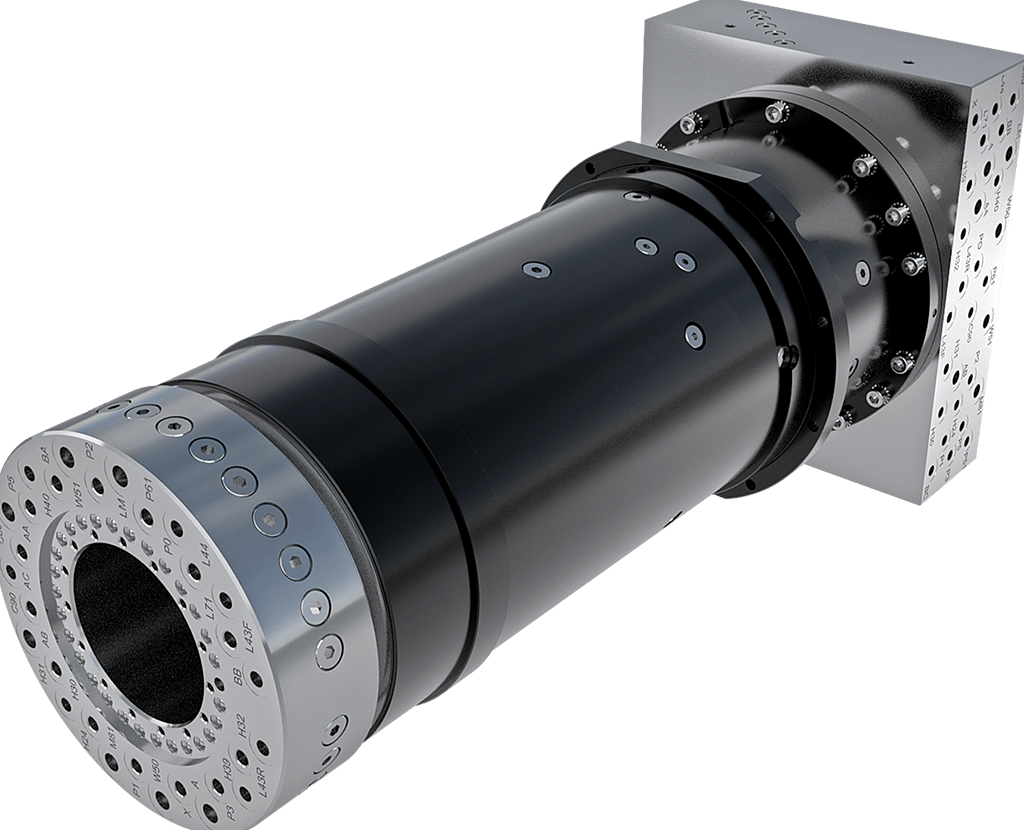

Hydraulic Swivel Joint for Industrial Sector Code 10237000
ALA Code: 10237000
No. of passages: 24
Ø Shaft: 240 mm
Std pressure: 250 bar
Type of fluid: Hydraulic Oil/Water/Gas
